齿轮工具软件-各国齿轮精度标准计算

xiaohu3516 · 发表于 2019-8-13 11:40

本帖子中包含更多资源。

您需要登录才可以下载或查看，没有账号？注册

x

本帖最后由 xiaohu3516 于 2019-8-13 21:52 编辑

本人12年齿轮行业工作经验，利用业余时间开发了这款齿轮工具软件。作为一款齿轮工艺人员的辅助工具，该软件覆盖面广，功能强大。后续会相继放出全部功能，欢迎广大论坛的朋友指正。软件只能提供试用版，无法免费共享，毕竟也是多年的心血，望大家理解。
软件均已通过多年验证。如有寻求合作或购买的请联系我。

本次放出渐开线圆柱齿轮精度计算和查询模块，主要包括：

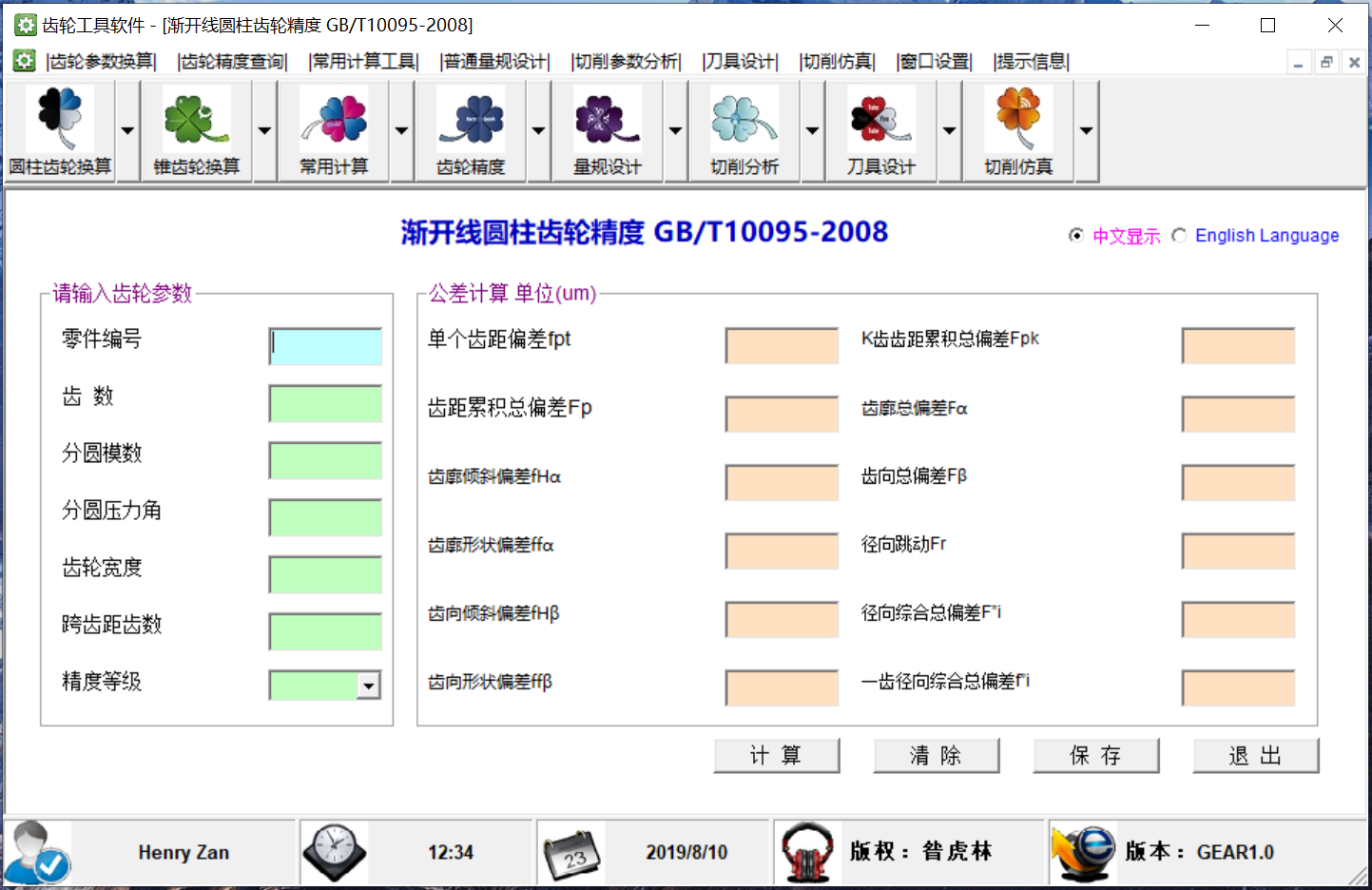

1. 渐开线圆柱齿轮精度国家标准GB/T10095-2008

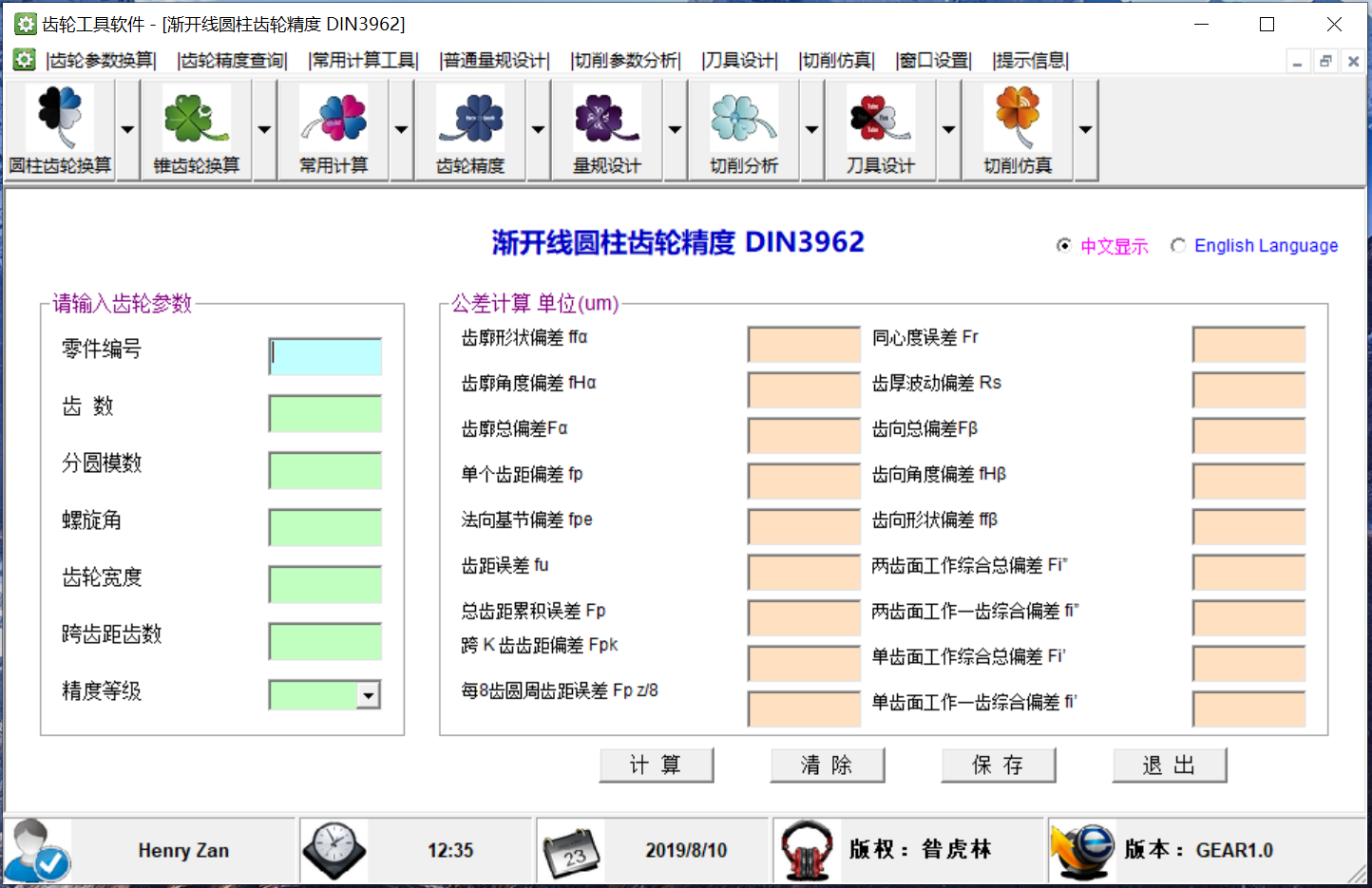

2. 德国渐开线圆柱齿轮精度标准DIN-3962

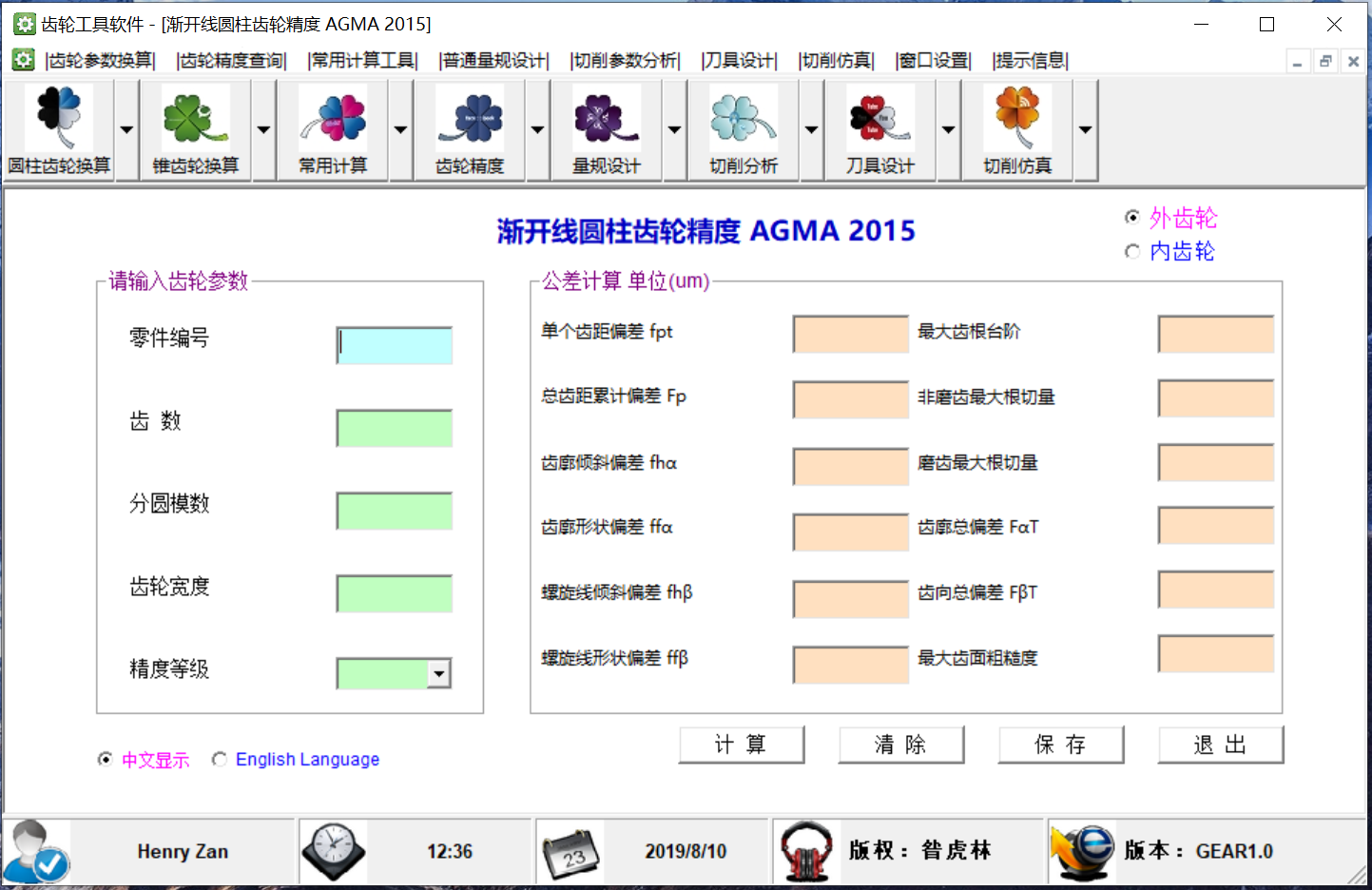

3.美国渐开线圆柱齿轮精度标准AGMA-2015

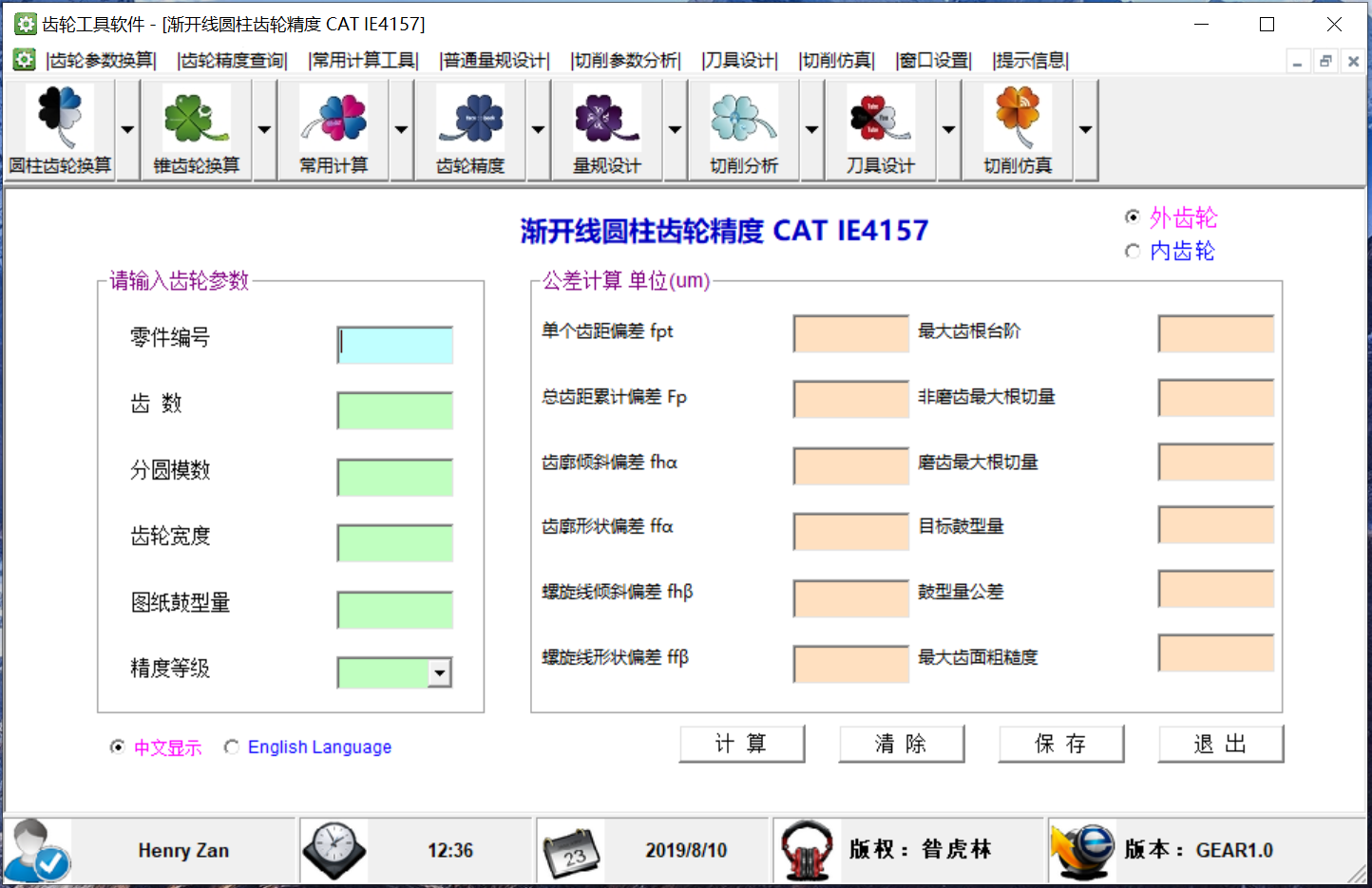

4. 美国卡特齿轮和花键相关精度标准

xiaohu3516 · 发表于 2019-8-13 21:43

本帖最后由 xiaohu3516 于 2019-8-13 21:52 编辑

补上测试版软件和使用说明书，需要的请下载。

stefan2020 · 发表于 2020-3-23 22:32

有没有各国标准的量规设计软件

suifengpiaoling · 发表于 2020-5-14 16:19

谢谢楼主分享

mrmrw · 发表于 2020-5-14 17:38

别搞了，花点时间研究一下其它的吧！
一个KissSoft全部搞定了，直接下载一个D版的就全有了！
**************
报告如下：
   KISSsoft Release 03/2018 F
ForEveryOne
   File
Name :       30+11+S2-C
Changed by:          Administrator on: 14.05.2020 at: 17:12:29

Manufacturing tolerances

Tolerances for cylindrical gears ISO 1328-1:2013 (JIS B 1702-1:2016)
Accuracy grade (A) 6 6
Single pitch deviation (μm) +- 7.5 +- 7.5 (fpT)
Normal base pitch deviation (μm) +- 6.7 +- 6.7 (fpbT)
Total cumulative pitch deviation (μm) 21.0 19.0 (FpT)
Profile form deviation (μm) 7.5 7.5 (ffaT)
Profile slope deviation (μm) +- 6.0 +- 6.0 (fHaT)
Total profile deviation (μm) 9.5 9.5 (FaT)
Helix form deviation (μm) 7.5 7.0 (ffbT)
Helix slope deviation (μm) +- 7.0 +- 7.0 (fHbT)
Total helix deviation (μm) 10.0 10.0 (FbT)
Runout (μm) 19.0 18.0 (FrT)
Single flank composite, tooth-to-tooth (μm) 7.5 7.5 (fisT)
Total tangential composite deviation (μm) 28.0 27.0 (FisT)
Sector pitch deviation (μm) +- 15.0 +- 0.0 (Fpz/8T)
Difference between adjacent pitches (μm) 10.0 10.0 (fuT)

Tolerances for cylindrical gears ISO 1328-1:1995 (JIS B 1702-1:1998)
Accuracy grade (Q) 6 6
Single pitch deviation (μm) +- 6.5 +- 6.5 (fpt)
Normal base pitch deviation (μm) +- 5.9 +- 5.9 (fpb)
Total cumulative pitch deviation (μm) 16.0 16.0 (Fp)
Sector pitch deviation (μm) +- 10.0 +- 6.5 (Fpk/8)
Profile form deviation (μm) 5.0 5.0 (ffa)
Profile slope deviation (μm) +- 4.2 +- 4.2 (fHa)
Total profile deviation (μm) 6.5 6.5 (Fa)
Helix form deviation (μm) 5.5 5.5 (ffb)
Helix slope deviation (μm) +- 5.5 +- 5.5 (fHb)
Total helix deviation (μm) 8.0 8.0 (Fb)
Single flank composite, tooth-to-tooth (μm) 15.0 15.0 (fi')
Total tangential composite deviation (μm) 31.0 31.0 (Fi')

Tolerances for cylindrical gears ISO 1328-2:1995 (JIS B 1702-2:1998)
Runout (μm) 13.0 13.0 (Fr)
Radial composite, tooth-to-tooth (μm) 3.8 3.8 (fi'')
Radial composite, total (μm) 16.0 16.0 (Fi'')

Tolerances for cylindrical gears DIN 3961:1978
Accuracy grade 6 6
Single deviations according DIN 3961:1978
Profile form deviation (μm) 4.5 4.5 (ff)
Profile slope deviation (μm) +- 4.5 +- 4.5 (fHa)
Total profile deviation (μm) 6.0 6.0 (Ff)
Normal base pitch deviation (μm) +- 6.0 +- 6.0 (fpe)
Single pitch deviation (μm) +- 6.0 +- 6.0 (fp)
Difference between adjacent pitches (μm) 8.0 8.0 (fu)
Total cumulative pitch deviation (μm) 17.0 13.0 (Fp)
Sector pitch deviation (μm) +- 11.0 +- 8.0 (Fpz/8)
Runout (μm) 11.0 9.0 (Fr)
Tooth thickness deviation (μm) 6.0 5.5 (Rs)
Total helix deviation (μm) 9.0 9.0 (Fb)
Helix slope deviation (μm) +- 8.0 +- 8.0 (fHb)
Helix form deviation (μm) 4.0 4.0 (ffb)

Transmission error according DIN 3961:1978
Single flank composite, tooth-to-tooth (μm) 9.0 9.0 (fi')
Total tangential composite deviation (μm) 19.0 16.0 (Fi')
Radial composite, tooth-to-tooth (μm) 5.5 4.0 (fi'')
Radial composite, total (μm) 15.0 12.0 (Fi'')

Tolerances for cylindrical gears in precision engineering DIN 58405:1972
Accuracy grade 6 6
Radial composite, tooth-to-tooth (μm) 4.3 3.9 (fi'')
Radial composite, total (μm) 12.5 10.9 (Fi'')
Axle alignment error (μm) 1.9 1.9 (fp)
Flank direction error (μm) 5.0 5.0 (fb)

Tolerances for spur, helical and crossed helical gears ANSI/AGMA 2015-1-A01 & 2015-2-A06
Accuracy grade A6 A6
Single pitch deviation tolerance (μm) +- 7.5 +- 7.5 (fptT)
Cumulative pitch deviation tolerance (μm) 29.0 29.0 (FpT)
Profile form tolerance (μm) 4.3 3.9 (ffaT)
Profile slope tolerance (μm) +- 3.6 +- 3.3 (fHaT)
Profile tolerance, total (μm) 5.5 5.0 (FaT)
Helix form tolerance (μm) 6.0 6.0 (ffbT)
Helix slope tolerance (μm) +- 6.0 +- 6.0 (fHbT)
Helix tolerance, total (μm) 8.5 8.0 (FbT)
Single flank composite tolerance, tooth-to-tooth (μm) 2.9 2.9 (fisT)
Single flank composite tolerance, total (μm) 32.0 32.0 (FisT)
Radial composite tolerance, tooth-to-tooth (μm) 5.5 5.5 (fidT)
Radial composite tolerance, total (μm) 30.0 30.0 (FidT)

Tolerances for spur, helical and crossed helical gears ANSI/AGMA 2000-A88:1988
(Replaced by ANSI/AGMA 2015-1-A01 in 2001)
Accuracy grade 11 11
Runout Radial Tolerance (μm) 14.0 11.0 (VrT)
Pitch Variation Allowable (μm) +- 5.1 +- 4.3 (Vpa)
Profile Tolerance (μm) 5.7 4.9 (VphiT)
Tooth Alignment Tolerance (μm) 6.6 6.6 (VpsiT)
Composite Tolerance, Tooth-to-Tooth (μm) 9.4 12.0 (VqT)
Composite Tolerance, Total (μm) 18.0 18.0 (VcqT)
(AGMA <-> ISO: VpA <-> fp, VrT <-> Fr, VpsiT <-> Fb, VqT <-> fidT, VcqT <-> FidT)

Tolerances for spur and helical gears, British Standard BS 436:Part 2:1977
Limits of tolerances
Quality 6 6
Single pitch error (μm) 9.6 9.6
Maximum cumulative pitch error (μm) 19.0 14.0
Tooth profile error (μm) 6.9 6.8
Tooth alignment error (μm) 6.7 6.7
Radial run-out of teeth error (μm) 31.5 30.6

Double flank composite tolerance limits
Tooth to tooth composite error (μm) 12.6 12.2
Total composite error (μm) 44.9 43.7

Single flank composite tolerance limits
Tooth to tooth composite error (μm) 16.5 16.4
Total composite error (μm) 25.9 20.8

( mn= 0.6 0.6 )
( z= 30 11 )
( d= 16.5 6.1 )
( b= 3.0 3.0 )

End of Report lines:          127

lindeijun · 发表于 2020-5-23 08:41

感谢楼主分享！！！

fly922 · 发表于 2020-6-6 21:03

感谢分享，谢谢

bz2020 · 发表于 2020-6-7 11:26

mrmrw 发表于 2020-5-14 17:38
别搞了，花点时间研究一下其它的吧！
一个KissSoft全部搞定了，直接下载一个D版的就全有了！
*********** ...

有下载链接吗？

lwbsjx · 发表于 2020-6-11 11:37

感谢分享，谢谢!

lindeijun · 发表于 2020-11-20 17:31

谢谢楼主分享
